Job b7a765c6-ca26-4bba-8cfd-f312b041013d

Job Information

Name
Al
MLP
MatterSim-v1.0.0-5M
Space group
Fm-3m (225)
Materials Project
mp-134
Status
Completed
Worker
sc020-1460381
Created
20260724 11:23:26
Updated
20261015 15:11:17

Melting Temperature

uMLIP: 812 +/- 35 K
PBE-corrected MT: 858 K
Reported uncertainties are propagated standard errors from the solid/liquid enthalpy sampling and the uncorrected melting-temperature uncertainty.

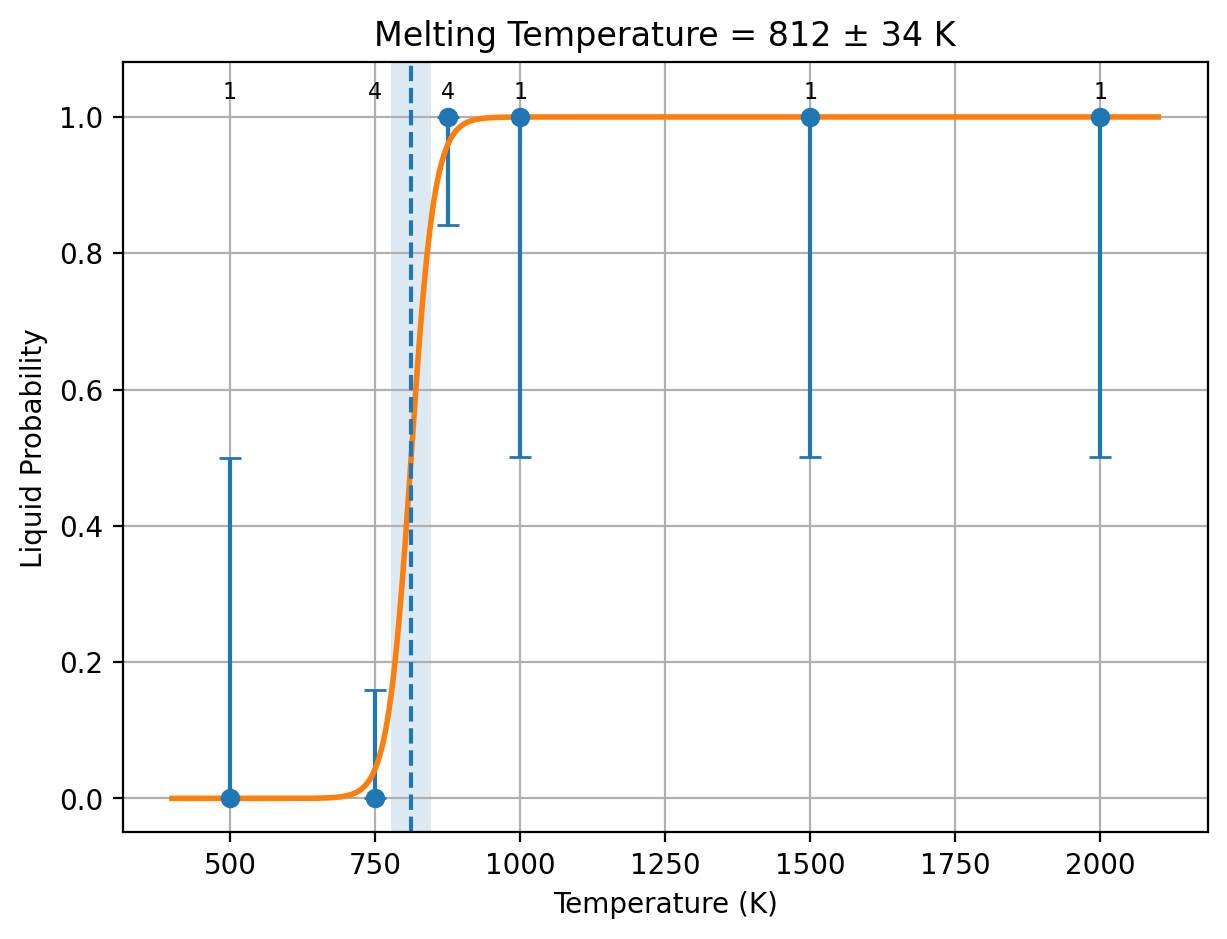

The fit figure below shows the trajectory counts at each temperature and the MPFit result.

Melting Temperature Fit

Download MPFit Figure
MPFit

Melting Thermodynamics

Method / sample set ΔH ΔS estimate
uMLIP (PBE sample set)
0.104271 eV/atom
10.0607 kJ/mol of atoms
0.000128472 eV/(atom K)
12.3957 J/(mol of atoms K)
PBE
0.110201 eV/atom
10.6328 kJ/mol of atoms
Inherited from matched uMLIP estimate
12.3957 J/(mol of atoms K)
uMLIP (R2SCAN sample set)
— eV/atom
— kJ/mol of atoms
— eV/(atom K)
— J/(mol of atoms K)
R2SCAN
— eV/atom
— kJ/mol of atoms
— eV/(atom K)
— J/(mol of atoms K)

ΔH is the liquid-minus-solid value reported by the existing correction workflow. Each uMLIP row uses the sample set matched to that DFT method. Uncertainties are standard errors; — means unavailable.

ΔS is estimated as ΔHuMLIP/Tm,uMLIP. Its propagated uncertainty assumes these two quantities are independent. The current PBE/R2SCAN correction inherits this entropy estimate; it is not an independently calculated DFT entropy.

Reported heat-capacity estimates

Sample set Cp,solid Cp,liquid
uMLIP (PBE sample set)
— J/(mol of atoms K)
— eV/(atom K)
— J/(mol of atoms K)
— eV/(atom K)
uMLIP (R2SCAN sample set)
— J/(mol of atoms K)
— eV/(atom K)
— J/(mol of atoms K)
— eV/(atom K)

Values reported in SLUSCHI.out by the correction workflow. These are uMLIP potential-energy–temperature slopes for the PBE/R2SCAN sample sets, not full thermodynamic heat capacities or independent DFT heat capacities. The workflow may substitute the other phase's slope when one is unavailable. Uncertainties are not reported; — means unavailable.

uMLIP volumes at melting

Vsolid [ų/atom] Vliquid [ų/atom] ΔV [ų/atom]
— — —
SLUSCHI Output
Download SLUSCHI.out
=======================================================================================================
Solid and Liquid in Ultra Small Coexistence with Hovering Interfaces (SLUSCHI)
Developed and maintained by Qi-Jun Hong, with early research support from Axel van de Walle (2014-2020)
=======================================================================================================
Generating solid with radius = 11
*** Generate a supercell from the current unitcell ***
The supercell is:
   6.5955440000000003        4.6637540000000000       -8.5678669999999997
  -6.5955440000000003        9.3275079999999999        0.0000000000000000
   6.5955440000000003        4.6637540000000000        8.5678629999999991
|a|,|b|,|c|,theta(bc),theta(ac),theta(ab):
    11.775    11.424    11.775    90.000    93.372    90.000
In UNIT-cell, number of atoms:    1 total:     1
Inverse Matrix is:
   5.0539160306292547E-002  -5.0539172103670801E-002   5.0539183901049049E-002
   3.5736582109948976E-002   7.1473180903909875E-002   3.5736598793960905E-002
  -5.8357595503663991E-002   0.0000000000000000        5.8357595503663991E-002
In SUPER-cell, number of atoms:   96 total:   96
POSCAR_STRCT atoms = 96
Accepted radius = 11 with 96 atoms
====================================================================================================
/data/qhong7/qhong7/sluschi_auto/b7a765c6-ca26-4bba-8cfd-f312b041013d/Al/Dir_lammps
['Al']
elements: ['Al']
counts: [96]
Original Tm = 1000.0
New temp      = 500
New temp_end  = 2000
500, 2000, 1
Adaptive temp step = 500
500
Start running job (temp, id) 500 1000 ...
Using closest available scale or default: 1.0
==============================
Iteration 1
Current scale = 1.0
Pressure = 25309.897000
New scale = 1.01
==============================
Iteration 2
Current scale = 1.01
Pressure = 6728.766890
New scale = 1.02
==============================
Iteration 3
Current scale = 1.02
Pressure = -10555.923550
Step reduced to 0.005
New scale = 1.0150000000000001
==============================
Iteration 4
Current scale = 1.0150000000000001
Pressure = -1293.415734
Converged!
Now running full trajectory...
Completed!
==============================
1000
Start running job (temp, id) 1000 1000 ...
Using closest available scale or default: 1.0150000000000001
==============================
Iteration 1
Current scale = 1.0150000000000001
Pressure = 27048.412500
New scale = 1.0250000000000001
==============================
Iteration 2
Current scale = 1.0250000000000001
Pressure = 14450.492440
New scale = 1.0350000000000001
==============================
Iteration 3
Current scale = 1.0350000000000001
Pressure = -470.088941
Converged!
Now running full trajectory...
Completed!
==============================
1500
Start running job (temp, id) 1500 1000 ...
Using closest available scale or default: 1.0350000000000001
==============================
Iteration 1
Current scale = 1.0350000000000001
Pressure = 24570.425990
New scale = 1.0450000000000002
==============================
Iteration 2
Current scale = 1.0450000000000002
Pressure = 12771.314200
New scale = 1.0550000000000002
==============================
Iteration 3
Current scale = 1.0550000000000002
Pressure = 2297.810270
Converged!
Now running full trajectory...
Completed!
==============================
2000
Start running job (temp, id) 2000 1000 ...
Using closest available scale or default: 1.0550000000000002
==============================
Iteration 1
Current scale = 1.0550000000000002
Pressure = 22910.052480
New scale = 1.0650000000000002
==============================
Iteration 2
Current scale = 1.0650000000000002
Pressure = 8983.595770
New scale = 1.0750000000000002
==============================
Iteration 3
Current scale = 1.0750000000000002
Pressure = 942.001670
Converged!
Now running full trajectory...
Completed!
==============================
500, 500, 1
Adaptive temp step = 100
500
Wrote /data/qhong7/qhong7/sluschi_auto/b7a765c6-ca26-4bba-8cfd-f312b041013d/Al/Dir_lammps/summary.csv
Wrote /data/qhong7/qhong7/sluschi_auto/b7a765c6-ca26-4bba-8cfd-f312b041013d/Al/Dir_lammps/summary.out
Collected 4 folders
Wrote phase_pred.csv
Label counts:
solid = 1
liquid = 3
Wrote jobs_results.out
---------------------------------------------
    Temp |    Solid |   Liquid |    Total
---------------------------------------------
     500 |        1 |        0 |        1
    1000 |        0 |        1 |        1
    1500 |        0 |        1 |        1
    2000 |        0 |        1 |        1
---------------------------------------------
====================================
   Melting Point Fit (MPFit)
====================================
Tm          = 507.78 K
Uncertainty = 8290.91 K
====================================
jobs_to_run.out Jobs completed
=== running MPFit ===
Melting temperature and std error: 507.78007199999996 8279.5982796419321
500 1 0 1
1000 0 1 1
1500 0 1 1
2000 0 1 1
=== Find next job to run ===
next job: 1 MD duplicate(s) at 750.00000000000000 K
750, 750, 1
Adaptive temp step = 100
750
Start running job (temp, id) 750 1000 ...
Using closest available scale or default: 1.0150000000000001
==============================
Iteration 1
Current scale = 1.0150000000000001
Pressure = 13457.502240
New scale = 1.0250000000000001
==============================
Iteration 2
Current scale = 1.0250000000000001
Pressure = -2450.590540
Converged!
Now running full trajectory...
Completed!
==============================
Wrote /data/qhong7/qhong7/sluschi_auto/b7a765c6-ca26-4bba-8cfd-f312b041013d/Al/Dir_lammps/summary.csv
Wrote /data/qhong7/qhong7/sluschi_auto/b7a765c6-ca26-4bba-8cfd-f312b041013d/Al/Dir_lammps/summary.out
Collected 5 folders
Wrote phase_pred.csv
Label counts:
solid = 2
liquid = 3
Wrote jobs_results.out
---------------------------------------------
    Temp |    Solid |   Liquid |    Total
---------------------------------------------
     500 |        1 |        0 |        1
     750 |        1 |        0 |        1
    1000 |        0 |        1 |        1
    1500 |        0 |        1 |        1
    2000 |        0 |        1 |        1
---------------------------------------------
====================================
   Melting Point Fit (MPFit)
====================================
Tm          = 759.09 K
Uncertainty = 8259.71 K
====================================
jobs_to_run.out Jobs completed
=== running MPFit ===
Melting temperature and std error: 759.09489150000002 8257.5588295324178
500 1 0 1
750 1 0 1
1000 0 1 1
1500 0 1 1
2000 0 1 1
=== Find next job to run ===
next job: 1 MD duplicate(s) at 875.00000000000000 K
875, 875, 1
Adaptive temp step = 100
875
Start running job (temp, id) 875 1000 ...
Using closest available scale or default: 1.0250000000000001
==============================
Iteration 1
Current scale = 1.0250000000000001
Pressure = 9101.661407
New scale = 1.0350000000000001
==============================
Iteration 2
Current scale = 1.0350000000000001
Pressure = -5860.799030
Step reduced to 0.005
New scale = 1.0300000000000002
==============================
Iteration 3
Current scale = 1.0300000000000002
Pressure = 1450.445739
Converged!
Now running full trajectory...
Completed!
==============================
Wrote /data/qhong7/qhong7/sluschi_auto/b7a765c6-ca26-4bba-8cfd-f312b041013d/Al/Dir_lammps/summary.csv
Wrote /data/qhong7/qhong7/sluschi_auto/b7a765c6-ca26-4bba-8cfd-f312b041013d/Al/Dir_lammps/summary.out
Collected 6 folders
Wrote phase_pred.csv
Label counts:
solid = 2
liquid = 4
Wrote jobs_results.out
---------------------------------------------
    Temp |    Solid |   Liquid |    Total
---------------------------------------------
     500 |        1 |        0 |        1
     750 |        1 |        0 |        1
     875 |        0 |        1 |        1
    1000 |        0 |        1 |        1
    1500 |        0 |        1 |        1
    2000 |        0 |        1 |        1
---------------------------------------------
====================================
   Melting Point Fit (MPFit)
====================================
Tm          = 758.85 K
Uncertainty = 3302.31 K
====================================
jobs_to_run.out Jobs completed
=== running MPFit ===
Melting temperature and std error: 758.84672341199996 3302.9489643679426
500 1 0 1
750 1 0 1
875 0 1 1
1000 0 1 1
1500 0 1 1
2000 0 1 1
=== Find next job to run ===
next job: 4 MD duplicate(s) at 750.00000000000000 K
next job: 4 MD duplicate(s) at 875.00000000000000 K
750, 750, 4
Adaptive temp step = 100
750
Start running job (temp, id) 750 1100 ...
Using scale from current temperature folder: 1.0250000000000001
==============================
Iteration 1
Current scale = 1.0250000000000001
Pressure = -2026.712559
Converged!
Now running full trajectory...
Completed!
==============================
Start running job (temp, id) 750 1200 ...
Using scale from current temperature folder: 1.0250000000000001
==============================
Iteration 1
Current scale = 1.0250000000000001
Pressure = -1100.793796
Converged!
Now running full trajectory...
Completed!
==============================
Start running job (temp, id) 750 1300 ...
Using scale from current temperature folder: 1.0250000000000001
==============================
Iteration 1
Current scale = 1.0250000000000001
Pressure = 534.802392
Converged!
Now running full trajectory...
Completed!
==============================
875, 875, 4
Adaptive temp step = 100
875
Start running job (temp, id) 875 1100 ...
Using scale from current temperature folder: 1.0300000000000002
==============================
Iteration 1
Current scale = 1.0300000000000002
Pressure = 2004.571457
Converged!
Now running full trajectory...
Completed!
==============================
Start running job (temp, id) 875 1200 ...
Using scale from current temperature folder: 1.0300000000000002
==============================
Iteration 1
Current scale = 1.0300000000000002
Pressure = -1986.847065
Converged!
Now running full trajectory...
Completed!
==============================
Start running job (temp, id) 875 1300 ...
Using scale from current temperature folder: 1.0300000000000002
==============================
Iteration 1
Current scale = 1.0300000000000002
Pressure = 1500.947776
Converged!
Now running full trajectory...
Completed!
==============================
Wrote /data/qhong7/qhong7/sluschi_auto/b7a765c6-ca26-4bba-8cfd-f312b041013d/Al/Dir_lammps/summary.csv
Wrote /data/qhong7/qhong7/sluschi_auto/b7a765c6-ca26-4bba-8cfd-f312b041013d/Al/Dir_lammps/summary.out
Collected 12 folders
Wrote phase_pred.csv
Label counts:
solid = 5
liquid = 7
Wrote jobs_results.out
---------------------------------------------
    Temp |    Solid |   Liquid |    Total
---------------------------------------------
     500 |        1 |        0 |        1
     750 |        4 |        0 |        4
     875 |        0 |        4 |        4
    1000 |        0 |        1 |        1
    1500 |        0 |        1 |        1
    2000 |        0 |        1 |        1
---------------------------------------------
====================================
   Melting Point Fit (MPFit)
====================================
Tm          = 811.81 K
Uncertainty = 34.07 K
====================================
jobs_to_run.out Jobs completed
=== running MPFit ===
Melting temperature and std error: 812.08107931600227 34.064281551731597
500 1 0 1
750 4 0 4
875 0 4 4
1000 0 1 1
1500 0 1 1
2000 0 1 1
 current fit
           1   812.08107931600227        34.064281551731597
 possibilities:
 current fit
           0   812.08107931600227        34.064281551731597
 possibilities:
MP accuracy achieved. Stopping code...
summary.out
======================================================================================================================================================
folder  poteng [eV/atom]  kineng [eV/atom]  temp [K]     volume [Ang^3/atom]  press [bar]   energy_slope  energy_dir  diffusion [cm^2/s]  spg
------  ----------------  ----------------  -----------  -------------------  ------------  ------------  ----------  ------------------  ------
1000/1  -3.469220         0.129272          1005.329624  19.603041            -5884.262705  0.00000252    up          6.180e-05           P1 (1)
1500/1  -3.376918         0.192487          1496.943375  20.915076            -4168.685189  0.00000543    up          1.690e-04           P1 (1)
2000/1  -3.302922         0.256653          1995.945715  21.960970            94.620167     0.00000607    up          2.670e-04           P1 (1)
500/1   -3.664867         0.063509          493.902110   17.180771            -4849.138003  0.00000066    up          1.320e-07           P1 (1)
750/1   -3.634299         0.097028          754.573052   17.202552            6725.686166   -0.00000220   down        6.770e-08           P1 (1)
750/2   -3.631701         0.094767          736.988617   17.241730            5894.040322   -0.00000098   down        2.420e-08           P1 (1)
750/3   -3.636106         0.097429          757.690974   17.087123            11131.749920  -0.00000414   down        1.870e-08           P1 (1)
750/4   -3.634613         0.096239          748.432354   17.152149            8711.675280   -0.00000275   down        1.470e-07           P1 (1)
875/1   -3.511350         0.112177          872.383605   18.794364            1604.558570   0.00000366    up          3.590e-05           P1 (1)
875/2   -3.531280         0.112366          873.855812   18.515605            1539.634040   0.00000191    up          1.210e-05           P1 (1)
875/3   -3.550134         0.114146          887.692759   18.352275            -2320.848081  -0.00000264   down        5.980e-06           P1 (1)
875/4   -3.497810         0.113724          884.411412   19.154468            -3558.707813  0.00000393    up          5.920e-05           P1 (1)
======================================================================================================================================================
Wrote /data/qhong7/qhong7/sluschi_auto/b7a765c6-ca26-4bba-8cfd-f312b041013d/Al/Dir_lammps/summary.csv
Wrote /data/qhong7/qhong7/sluschi_auto/b7a765c6-ca26-4bba-8cfd-f312b041013d/Al/Dir_lammps/summary.out
Collected 12 folders
Wrote phase_pred.csv
Label counts:
solid = 5
liquid = 7
Wrote jobs_results.out
---------------------------------------------
    Temp |    Solid |   Liquid |    Total
---------------------------------------------
     500 |        1 |        0 |        1
     750 |        4 |        0 |        4
     875 |        0 |        4 |        4
    1000 |        0 |        1 |        1
    1500 |        0 |        1 |        1
    2000 |        0 |        1 |        1
---------------------------------------------
====================================
   Melting Point Fit (MPFit)
====================================
Tm          = 811.63 K
Uncertainty = 34.03 K
====================================
Wrote /data/qhong7/qhong7/sluschi_auto/b7a765c6-ca26-4bba-8cfd-f312b041013d/Al/Dir_lammps/cost_table.out
Collected 36 log files

====================================
Computational cost summary:
Number of trajectories (temp/id) = 12
Total log files (incl. subruns)  = 36
Total wall time                 = 1:19:27
Total seconds                  = 4767
Total GPU hours                = 1.32
====================================

=== DFT corrections begin ===
=== PBE correction ===
N rows with PBE energy = 7
MT_LMP = 811.6263454787638
STD_LMP = 34.03296792783358
SOLID (PBE present only):
  lammps_poteng_eV_per_atom = -3.63231986
  PBE_energy_eV_per_atom = -3.63828132
LIQUID (PBE present only):
  lammps_poteng_eV_per_atom = -3.52804851
  PBE_energy_eV_per_atom = -3.52808028
DH_LMP_raw_PBE = 0.10427135 eV/atom
DH_LMP_PBE = 0.10427135 eV/atom
DH_PBE = 0.11020104 eV/atom
DH_raw_PBE = 0.11020104 eV/atom
MT_PBE = 857.78179782 K

=== R2SCAN correction ===
N rows with R2SCAN energy = 0
MT_LMP = 811.6263454787638
STD_LMP = 34.03296792783358
SOLID (R2SCAN present only):
  lammps_poteng_eV_per_atom = N/A
  R2SCAN_energy_eV_per_atom = N/A
LIQUID (R2SCAN present only):
  lammps_poteng_eV_per_atom = N/A
  R2SCAN_energy_eV_per_atom = N/A
DH_LMP_raw_R2SCAN = N/A
DH_LMP_R2SCAN = N/A
DH_R2SCAN = N/A
MT_R2SCAN = N/A
=== DFT corrections end ===
Submitted POSCAR
Al1
1.0
   2.4733290000000001    0.0000000000000000    1.4279770000000001
   0.8244430000000000    2.3318770000000000    1.4279770000000001
   0.0000000000000000    0.0000000000000000    2.8559549999999998
Al
1
direct
   0.0000000000000000    0.0000000000000000    0.0000000000000000 Al

Returned Output Files

No output files have been received yet.
